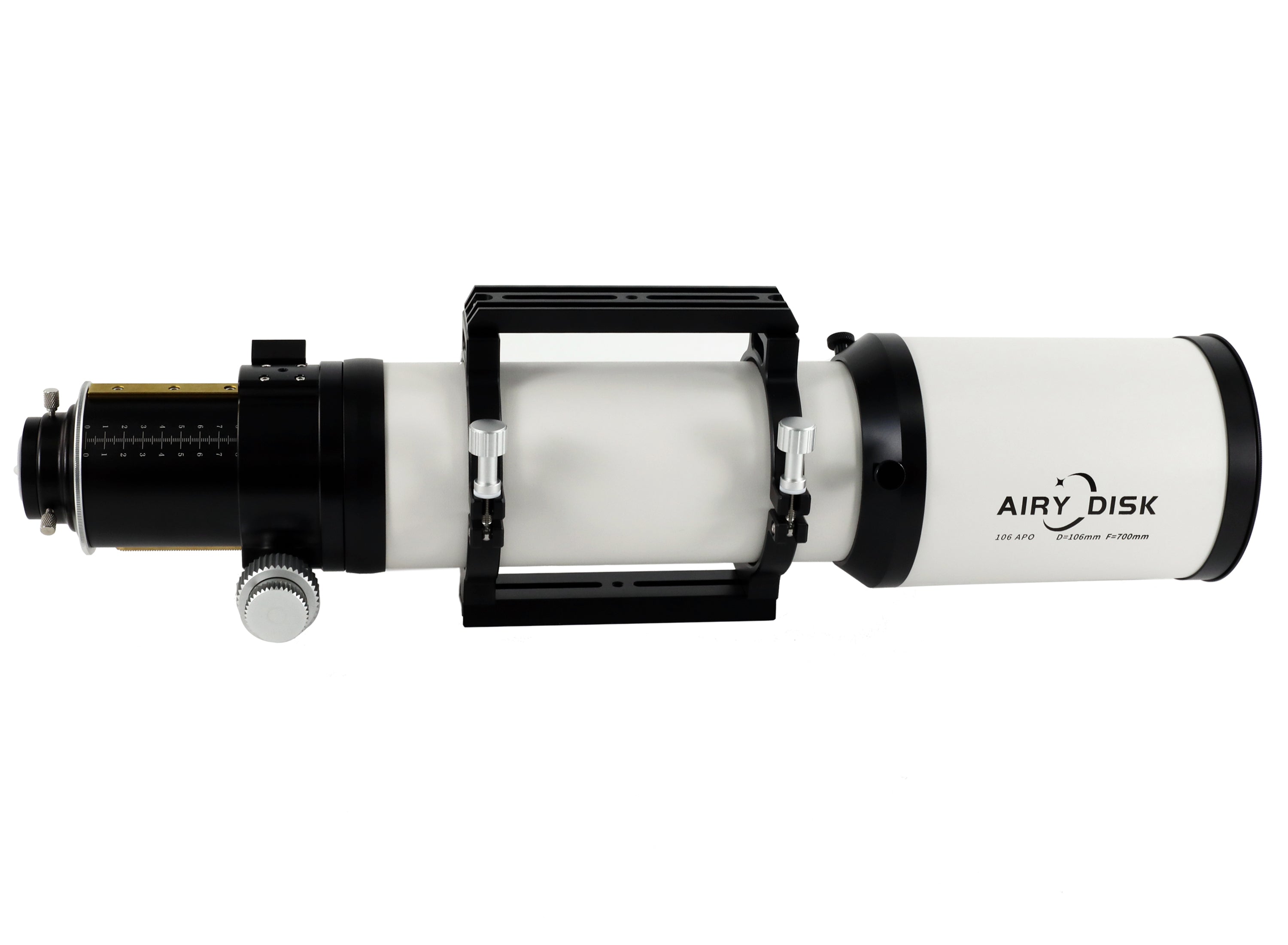

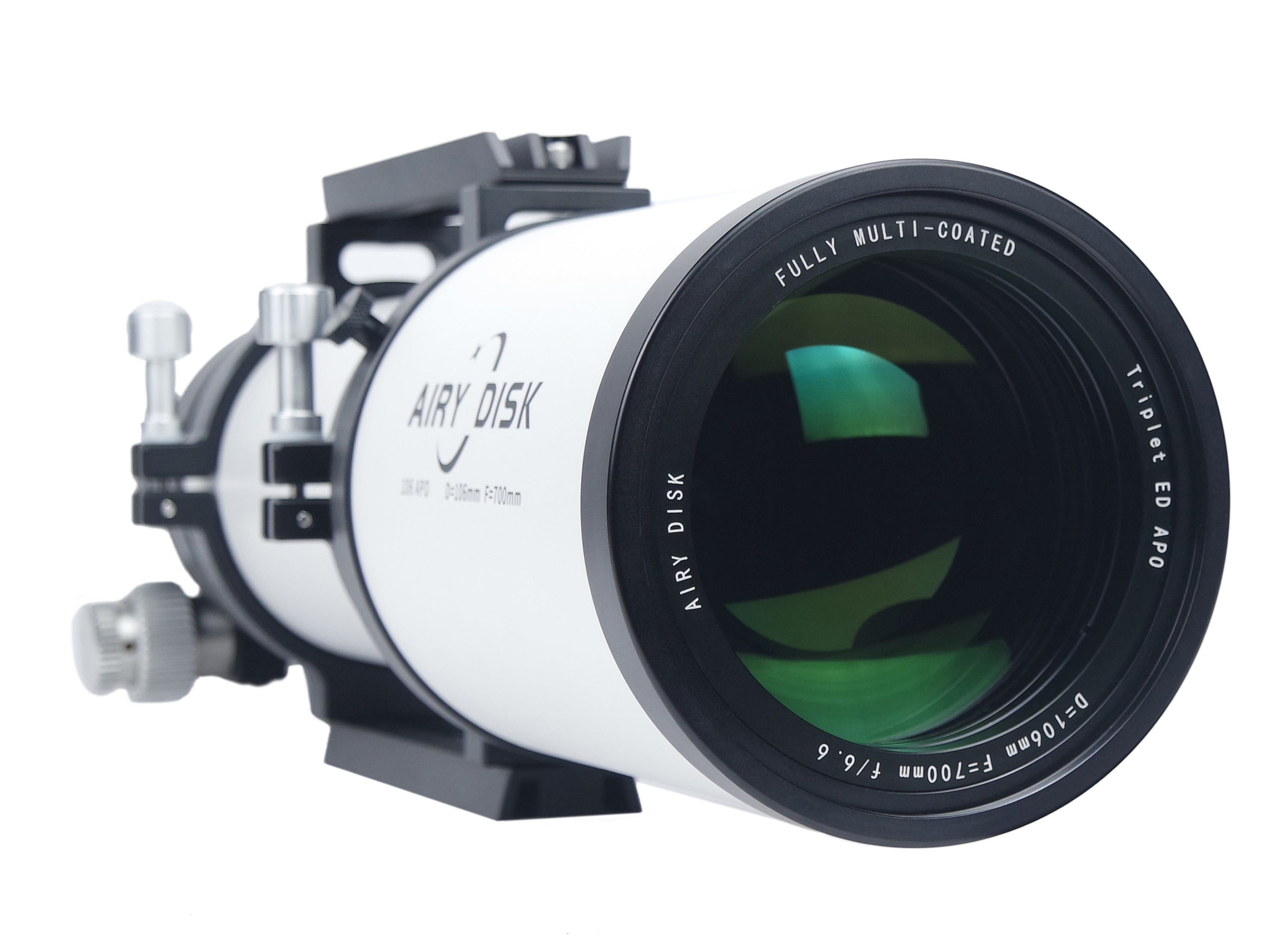

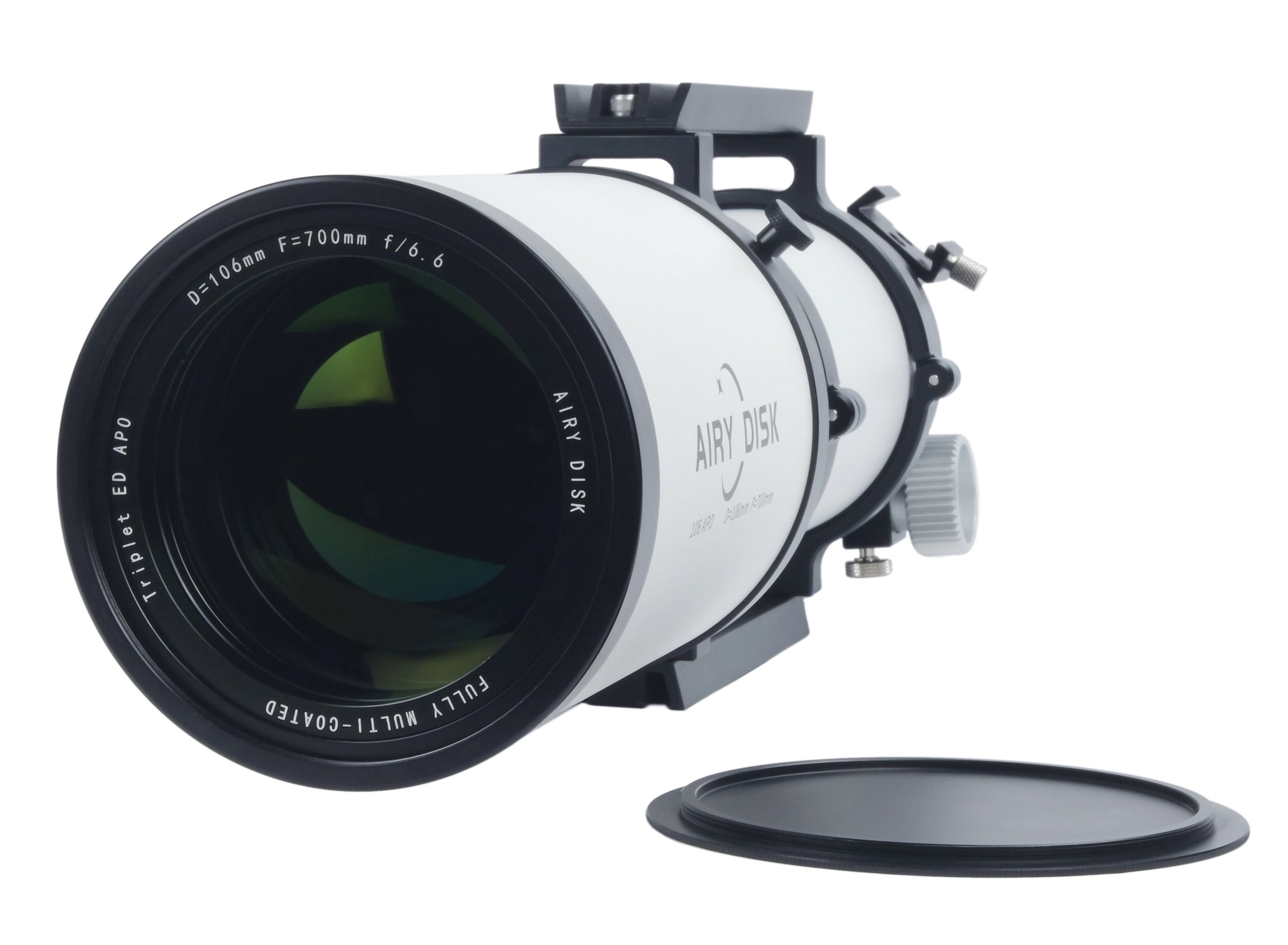

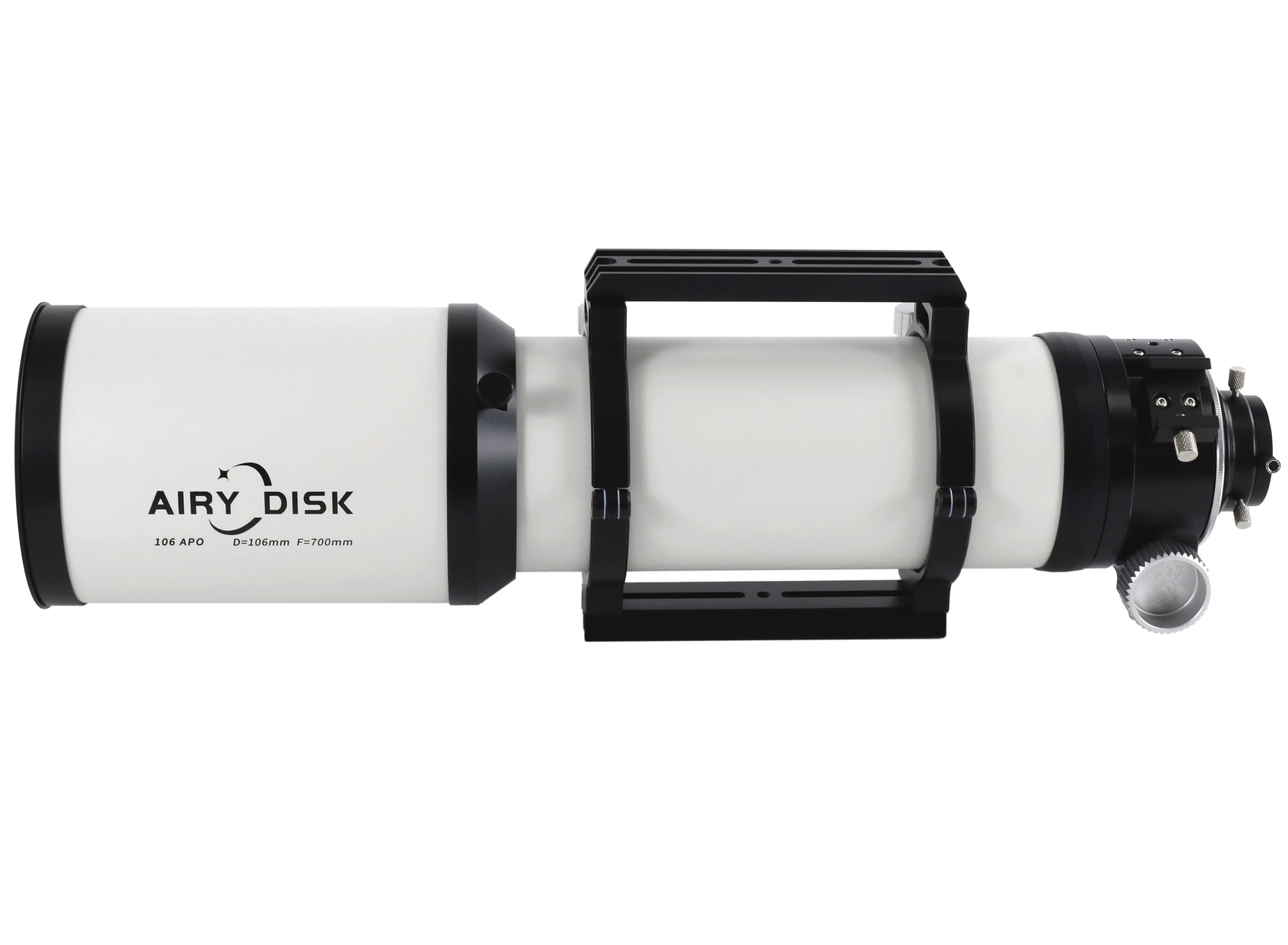

Airy Disk APO 106mm f/6.6 Triplet FCD-100

$2,214.99

Free Shipping-No Additional Import Fees

Availability: Translation missing: en.general.icons.icon_check_circle icon Only 10 left!

Notify me when back in stock

Superior Contrast, Stunning Optical Power

The Airy Disk APO 106mm f/6.6 Triplet is engineered for astronomers who refuse to compromise on contrast, brightness, or clarity. With its slightly over 4-inch aperture, this refractor strikes the perfect balance between portability and exceptional optical performance—making it a versatile choice for both astrophotographers and visual observers.

At its core is a premium triplet objective built with Hoya FCD-100 extra-low dispersion glass, one of the finest ED materials available. This Japanese-crafted glass nearly eliminates chromatic aberration, resulting in razor-sharp stars, crisp planetary detail, and beautifully accurate color. Whether you're capturing deep-sky images or studying the planets at high magnification, the 106mm APO delivers professional-grade results.

Its f/6.6 focal ratio provides an excellent blend of light-gathering power, contrast, and versatility—ideal for detailed lunar and planetary views as well as high-quality imaging of galaxies, nebulae, and clusters. With robust mechanical construction and precision focusing, this telescope performs reliably in the field and integrates seamlessly into advanced imaging setups.

Perfect for:

  • High-contrast planetary and lunar observing

  • Deep-sky astrophotography

  • Intermediate to advanced astrophotographers

  • Users seeking more brightness and resolution than 80–100mm class refractors

Key Features:

  • 106mm aperture for enhanced brightness and fine detail

  • Triplet APO design with FCD-100 glass for superb color correction

  • f/6.6 focal ratio optimized for a balance of contrast and imaging versatility

  • Durable, precision-engineered mechanics

  • Ideal for both portable setups and permanent imaging rigs

Unlock the next level of astronomical performance. The Airy Disk APO 106mm f/6.6 Triplet FCD-100 offers outstanding contrast, brightness, and clarity—bringing the universe into breathtaking focus.

Specifications:

SKU 106APO
Glass used HOYA FCD100, CDGM
Aperture 106mm
Focal ratio f/6.6
Focal length 700mm
Coating full wideband multi coating
Resolving Power 1.09"
Limit mag. 11.9mag
Color White
Tube Material Aluminum alloy
Dovetail style Vixen
Focuser
3" dual-speed 1:10 rack-and-pinion, now with 3 linear rails(Mid 2024)
Available FF 0.75x FF, 0.92x FF
Reduce to 525mm f/5, 644mm f/6
Backfocus adjustable
CAA optional
For sensor Full Frame
Eyepiece Clamp 2" with 1.25" Adapter
Length ext 645mm
Length hood in 550mm
OTA+PARTS 5.9kg
OTA 5.19kg
OTA DIA 114cm
Dustcover SCREW
Ring weight 0.45kg
Total mounting HW 0.72kg
Box size(cm) 67.5x34.5x25.5
Box weight 8.51kg
Alu Suitcase optional
Alu carton size 79x33x45.5
Weight incl Suitcase 13.39kg
Focuser thread front M110x1
Focuser thread rear M80x1
Rear thread depth 5.5mm
Rear hole depth 8mm
